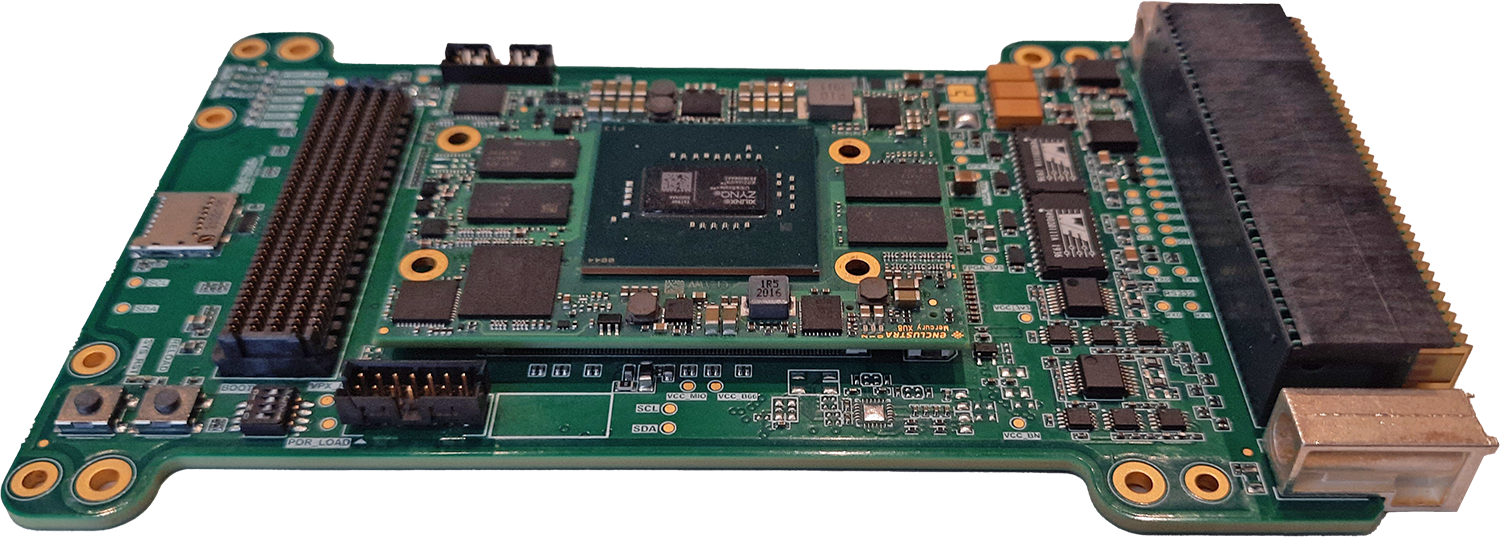

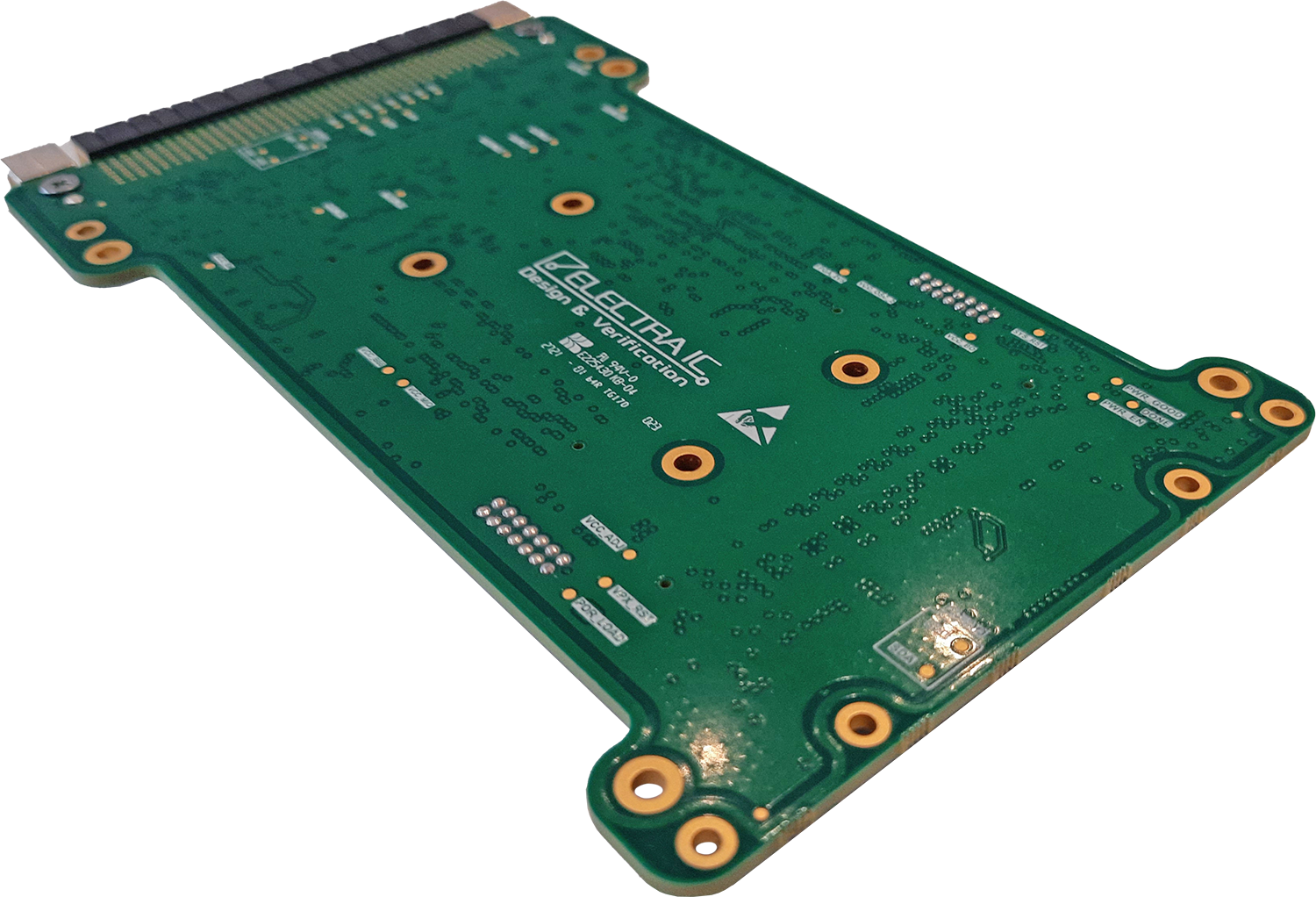

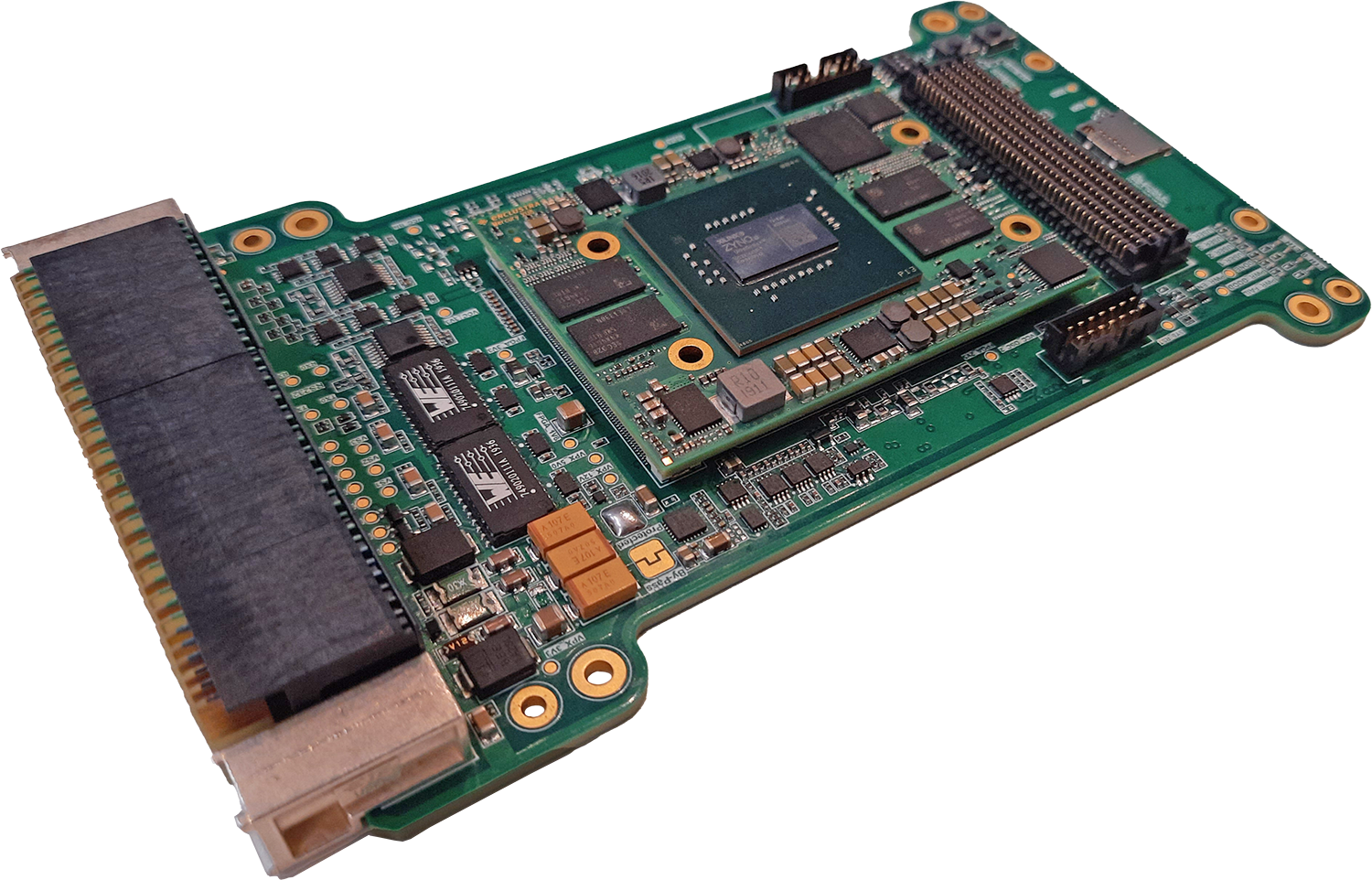

The BitFlex-VPX3-MZQU is a high-performance FPGA processing module based on the Xilinx Zynq UltraScale + family of FPGAs. It provides multiple high-speed fabric interfaces, external memory, an FMC site, and high-density I/O. It is ideal for customizable, high-bandwidth, signal-processing and image-processing applications.
FPGA
• Dual-core ARM® Cortex™-A53 MPCore™ up to 1.333 GHz
• Dual-core ARM® Cortex™-R5 MPCore™ up to 533 MHz
• 1 GB of DDR3 SDRAM
• 512 MB NAND flash
• 64 MB quad SPI flash
PHYSICAL CHARACTERISTICS

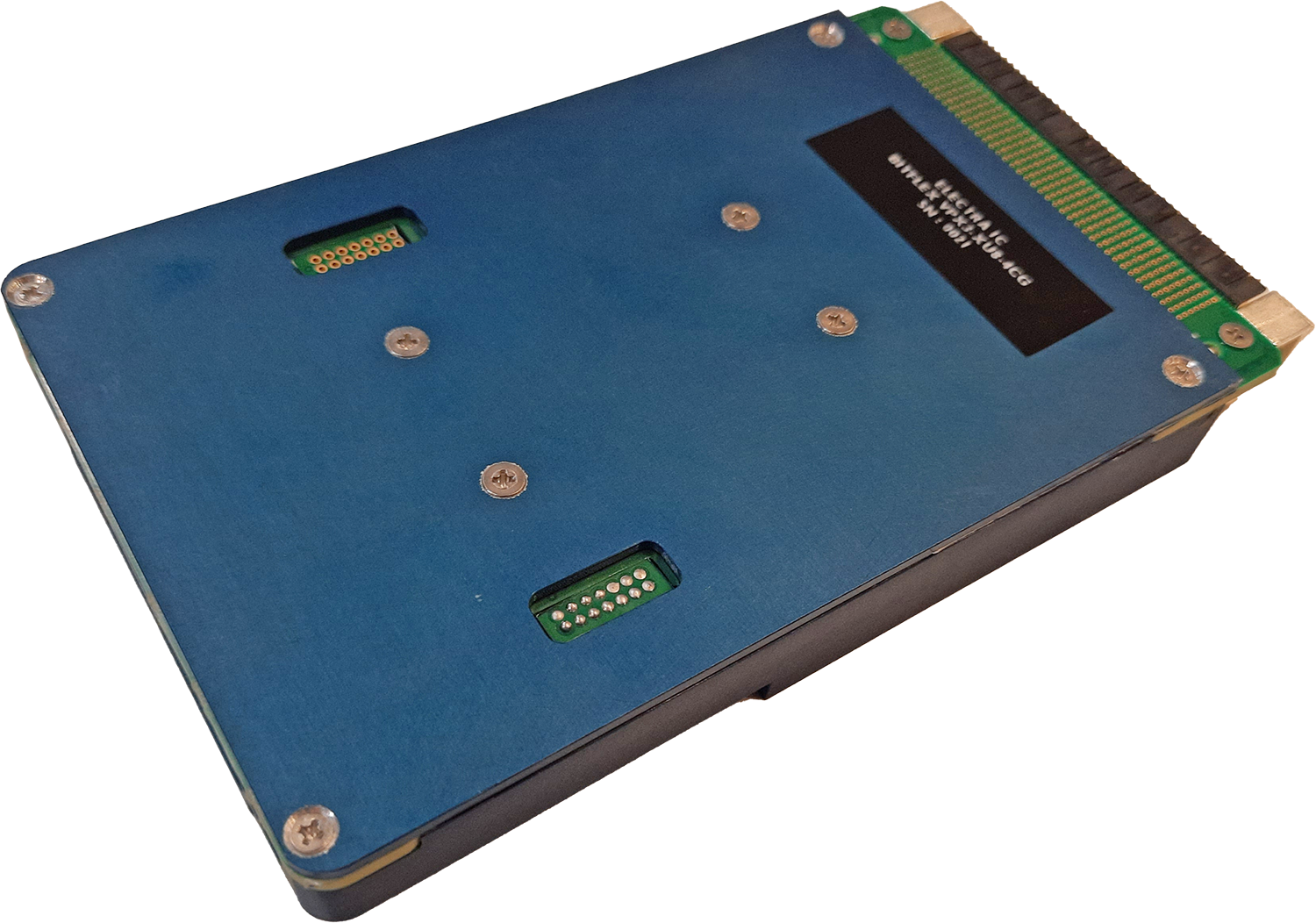

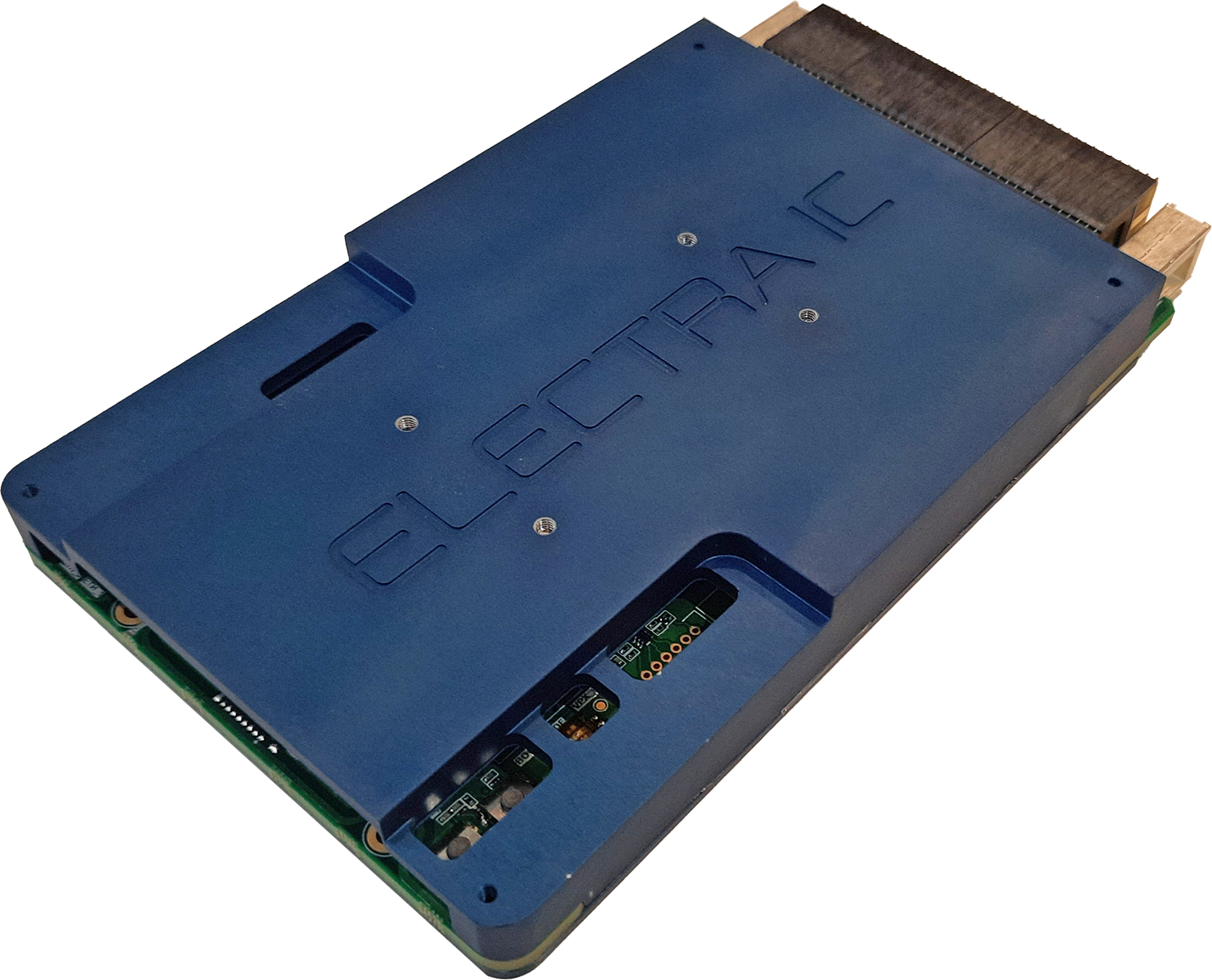

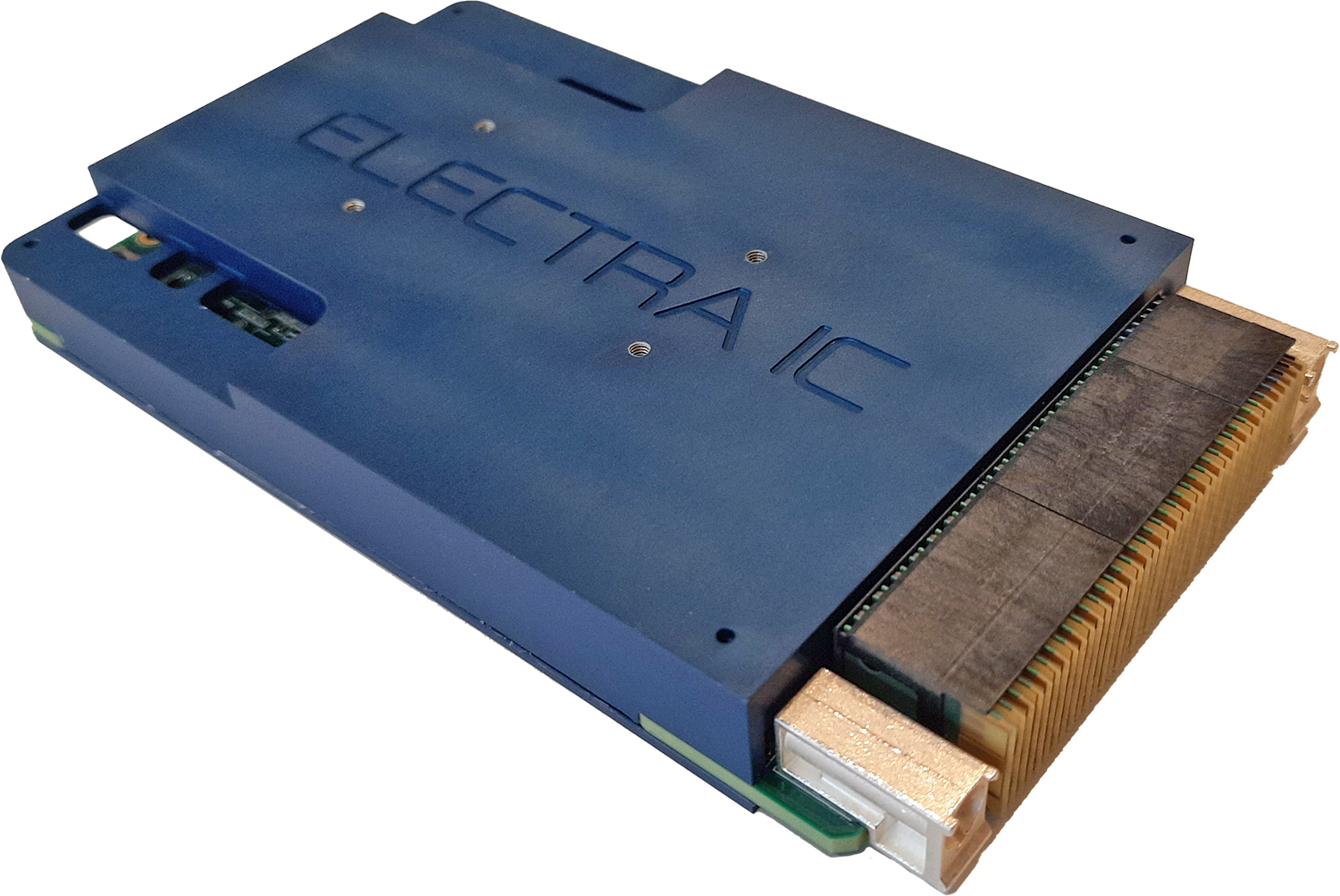

• 3U VPX-REDI air-cooled form factor
• Dimensions: 100 mm x 160 mm
• 0.85 in. and 1.0 in. pitch with solder-side cover
VPX (VITA 46) P1 I/O
• PCI Express Gen3 4x Lanes
• 8x RX/TX GTH-capable
• High-Speed Serial (HSS) lanes
VPX (VITA 46) P2 I/O
• 2 x 1G Ethernet Interface
• RS232 Interface
• 2x USB Interface.
• 8 LVDS lines
FIRMWARE SUPPORT
• VHDL cores for all hardware resources
• Base design
PRODUCT CODE: EIB-303U-MXZU8
For more information, contact sales@electraic.com
