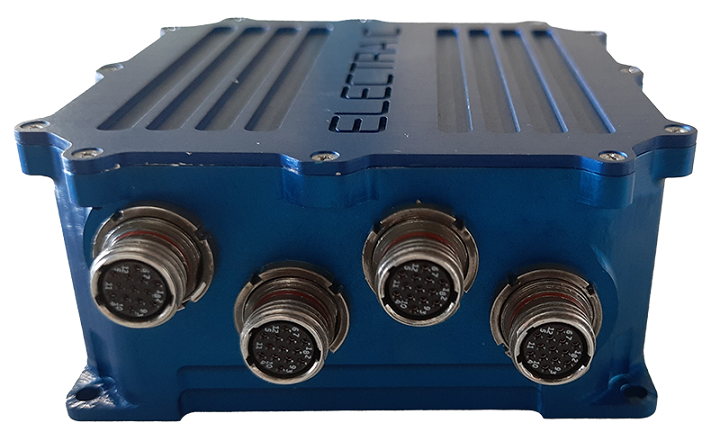

ARINC664 End System Equipment

ARINC664 End System Equipment

  • ARINC664 End System Equipment - Embedded Systems - ElectraIC

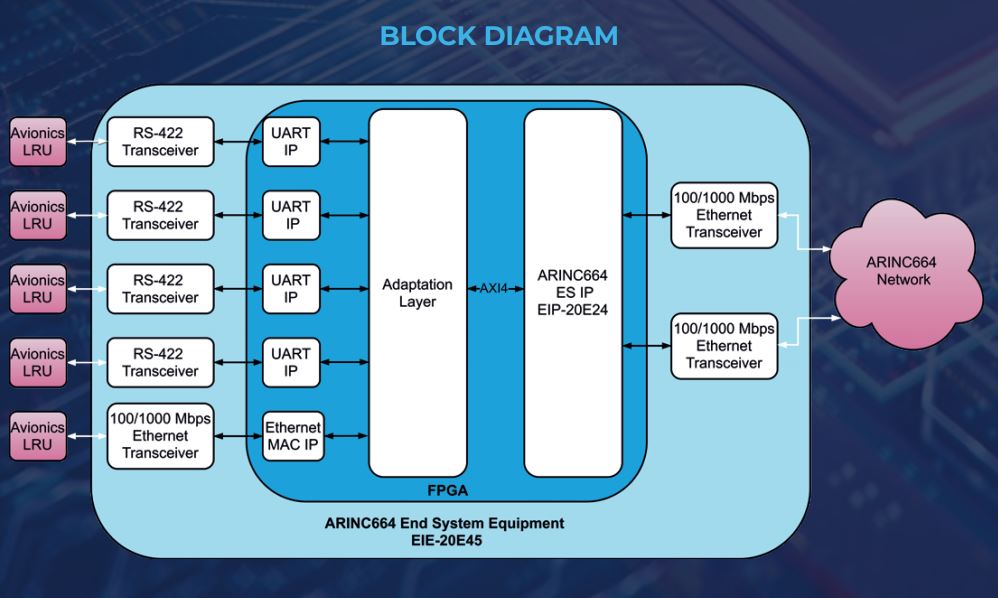

ARINC664 End System Equipment implements ARINC664 part 7 and provides interface between aircraft LRUs and ARINC664 network. It offers an adaptation between RS-422/ARINC664 and Ethernet/ARINC664. In this manner, four RS-422 ports and one Ethernet port are added to the design such that an easy adaptation can be done when a customer wants to use LRUs with flight heritage. Equipment also has a test mode that measures the latency occurred on messages of the relevant VL number.

FUNCTIONAL SPECS
• Supports 32 VLs
• Adjustable BAG values (1ms to 128ms, 125 us to 32 ms)
• Supports data lengths of 64 byte as Lmin and 1471 byte as Lmax
• Adjustable message priority (two classes)
• Redundancy enable/disable capability
• Integrity checking enable/disable capability

INTERFACE SPECS
• Two ARINC664 Ethernet ports
• One user Ethernet port

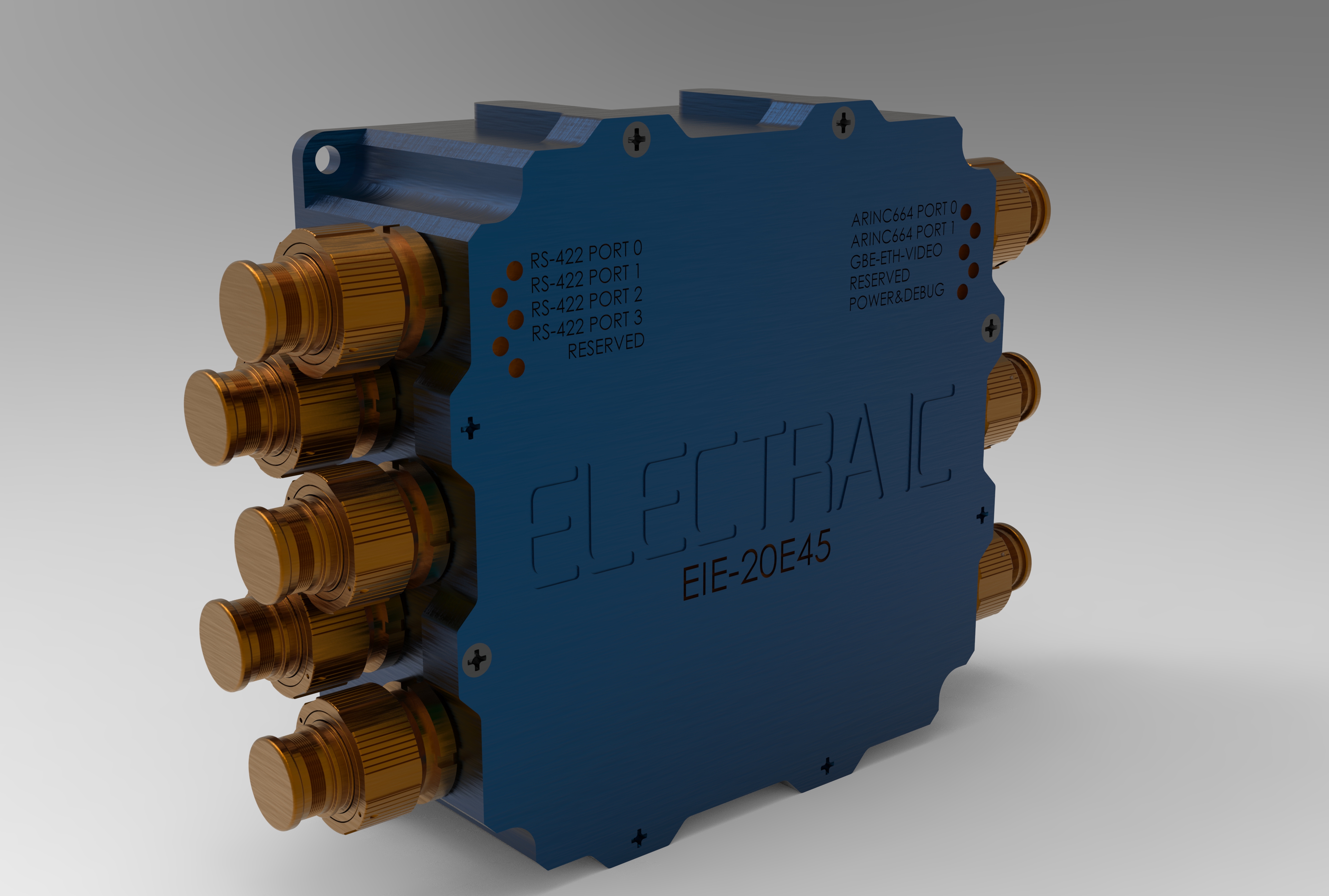

• Four user RS-422 ports
• Adjustable 100 Mbps/1000 Mbps Ethernet
• Adjustable RS-422 baud rates from 9.6 Kbps to 4 Mbps

EQUIPMENT FUNCTIONAL SPECS
• DO-254 DAL A compliance
• Configurable via user Ethernet port
• Outputs error statistics and equipment health through ARINC664 traffic
• A comprehensive built-in self-test
• Test mode support to observe message latency in the network
• IEEE 1588 support
• Free to use GUI for device configuration and traffic generation
• 100mm x 100mm x 50mm
• 400 g weight
• 28 VDC power input
• 5W power consumption

ENVIRONMENTAL SPECS

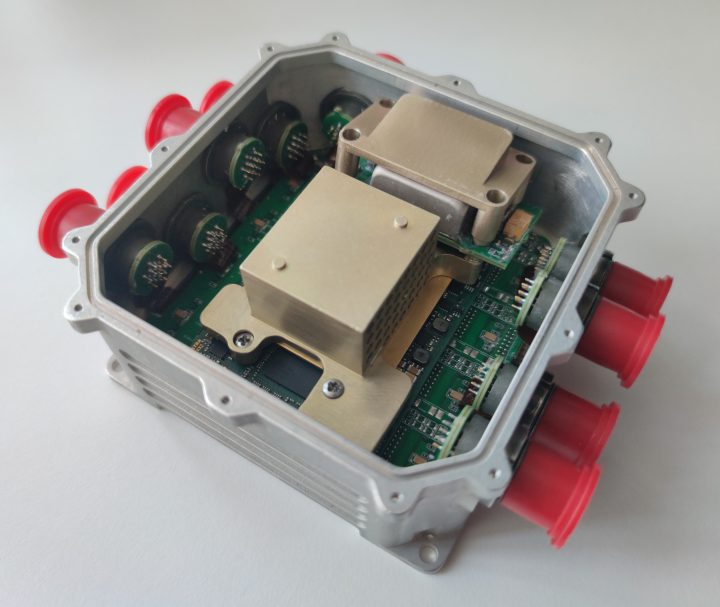

• Rugged with conduction cooling design
• Operating temperature of -30°C to +70°C ambient
• Withstanding forces up to ±20G and vibrations of 2,000 Hz
• Operating +60 °C temperature and 95% relative humidity conditions
• CE101, CE102, CS101 and RS103 compliance in the scope of MIL-STD-461G

DOCUMENTATION

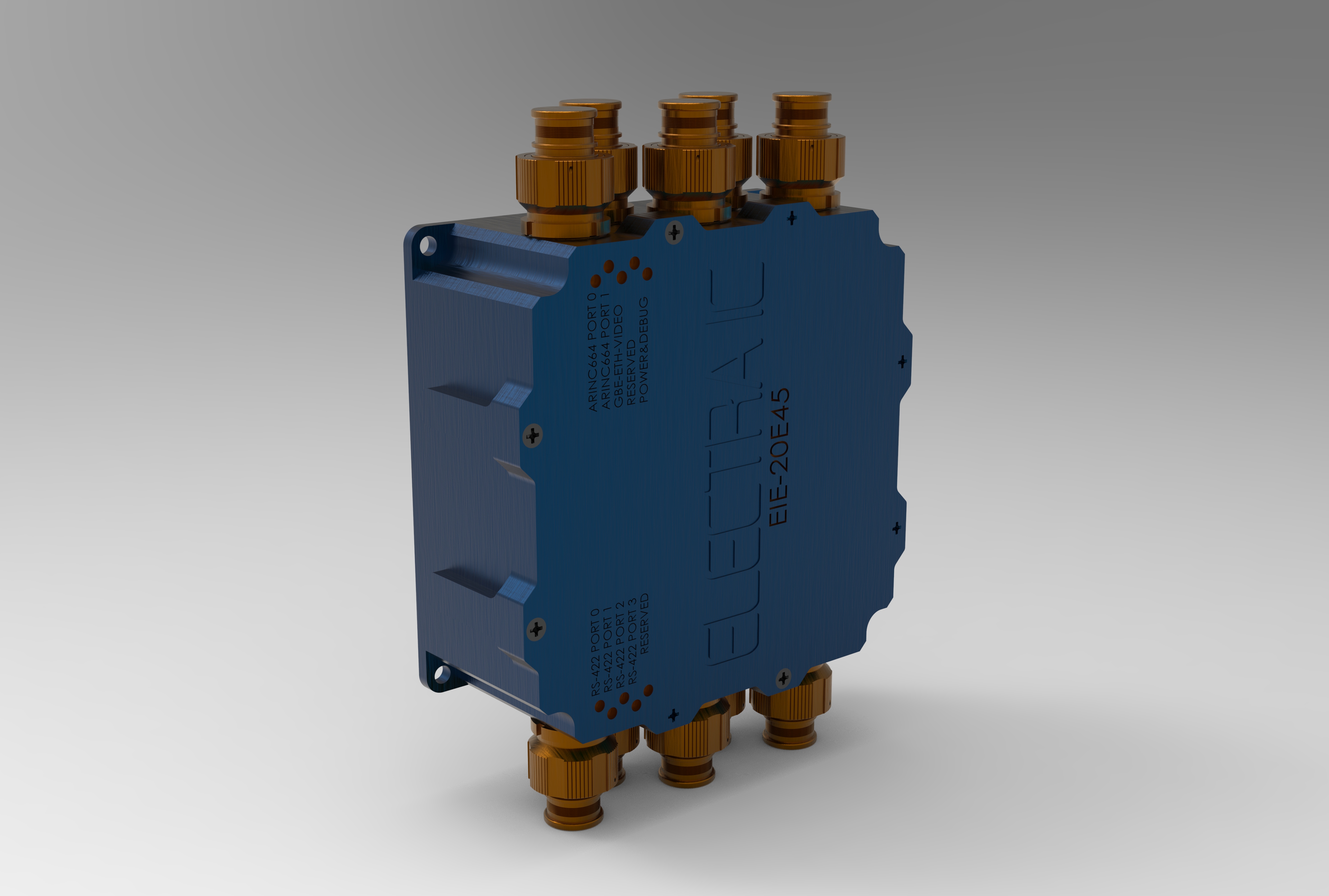

ARINC664 END SYSTEM EQUIPMENT EIE-20E45
