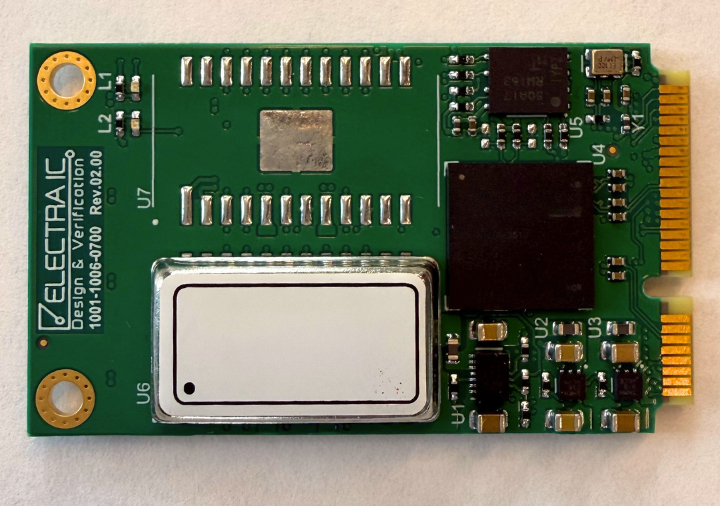

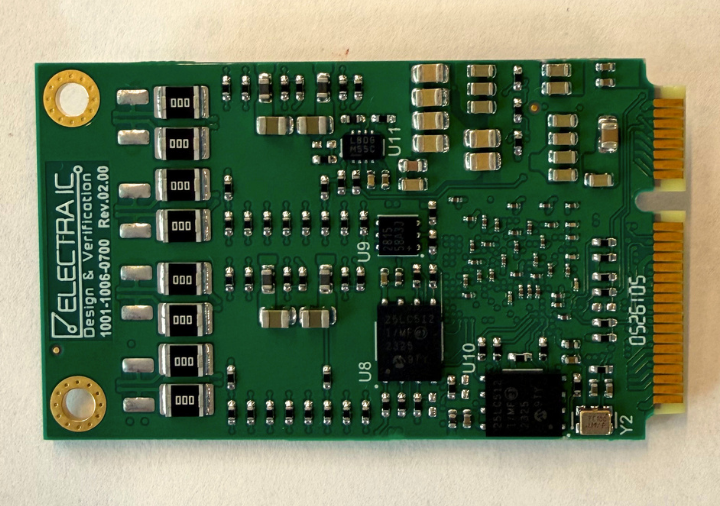

FEATURES
- MIL-STD-1553B Compliant
- Concurrent Multi-Terminal Operation (Bus Controller, Monitor Terminal, and 2 Independent Remote Terminals) for Each Redundant Bus separately
- 2-Dual Redundant On-Chip Bus Transceivers
- 64K Bytes Internal Memory with optional Error Detection/Correction (EDC)
- Programmable Bus Controller with 28-Instruction Op Code Set
- IRIG-106 Chapter 10 & Simple Monitor Terminal (SMT) Modes
- Up to 10Mbps SPI Host Interface
- Autonomous Auto-Initialization via EEPROM
- Independent 16-bit Time Tag Counters (up to 48-bit in MT Mode)
- 64-Word Interrupt Log Buffer with Hardware-Assisted Decoding
SPECS
- Microchip MPF100T-FCSG325I FPGA
- Air Cooled Board
- Up to 10 Mbps SPI Host Interface
- 256 Mbit SPI Flash
- 2x 512 Kbit SPI EEPROM
- 1-Wire Authentication Support
- F2 mPCIe Full-Mini Card Form Factor (30 x 50.95 mm)
- 3.3V DC Power Supply
- RoHS Compliance
- 2x100MHz LVDS Differential Clock IC
APPLICATIONS
- Embedded MIL-STD-1553B Standard Implementations
- Rugged and Compact Embedded Systems
- Bus Troubleshooting Applications
- Diagnostic Systems
- Handheld Test Equipment
For more information, contact sales@electraic.com

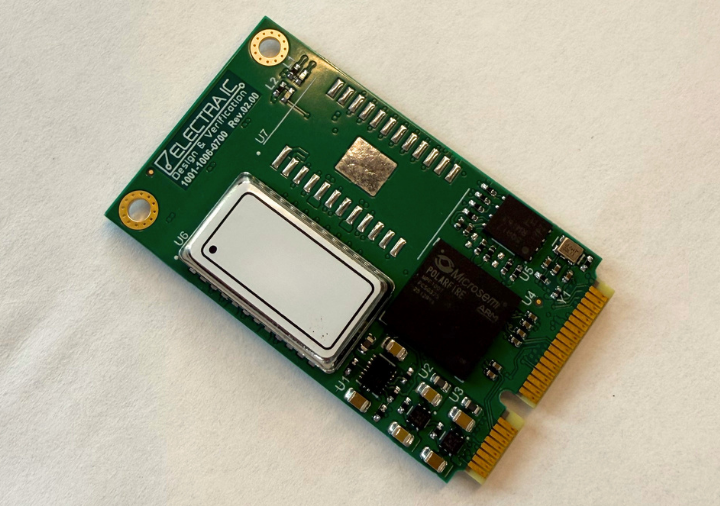

Product Brochure: Full-Mini Card Form Factor F2 SPI MIL-STD-1553 Board
