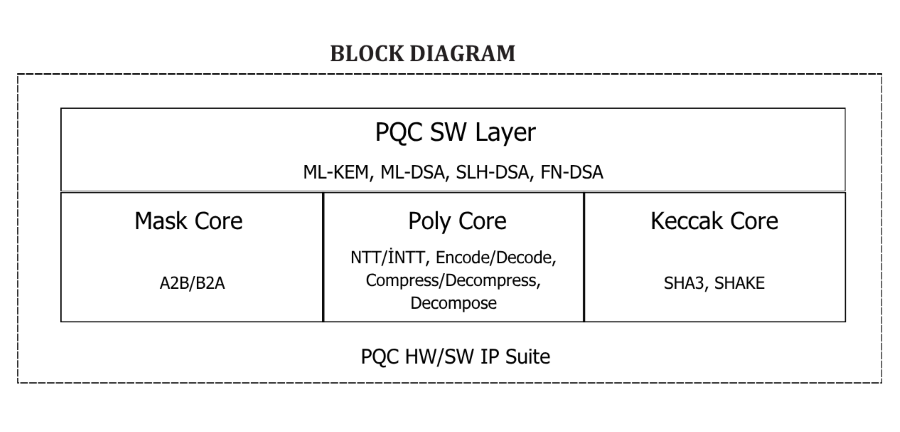

PQC HW/SW IP Suite is composed of three dedicated HW IP cores (PolyCore, KeccakCore, MaskCore) and the software stack leveraging these IP cores to implement PQC algorithms. It is designed to support NIST’s selected Post-Quantum Cryptography (PQC) standards, ML-KEM (Kyber), ML-DSA (Dilithium), SLH-DSA (SPHINCS+), and FN-DSA (Falcon). This IP is fully compliant with the NIST’s published standards, and offers countermeasures against Side-Channel Analysis attacks.

FEATURES LIST

• PQC hardware IP core set is customizable, and the standard offering includes three cores targeting PQC algorithms:
  • KeccakCore, PolyCore, MaskCore
• Supported Algorithms (algorithm set is customizable):
  • ML-KEM
    • FIPS-203 compliant
    • Key Generation, Encapsulation, Decapsulation
    • All security levels: ML-KEM-512, ML-KEM-768, ML-KEM-1024
  • ML-DSA
    • FIPS-204 compliant
    • Key Generation, Signature Generation, Signature Verification
    • All security levels: ML-DSA-44, ML-DSA-65, ML-DSA-87
  • SLH-DSA
    • FIPS-205 compliant
    • Key Generation, Signature Generation, Signature Verification
    • All security levels: SLH-DSA-SHAKE-128s/f, SLH-DSA-SHAKE-192s/f, SLH-DSA-SHAKE-256s/f
  • FN-DSA
    • Falcon Round 3 Submission compliant. Will be updated with FIPS-206 upon its publication
    • Signature Verification
    • All security levels: Falcon-512, Falcon-1024
• Optional Side-Channel Analysis and Fault Injection attacks countermeasures (e.g., masking)
• AXI4 interface for system integration and drivers available upon request
• Crypto-agility: Modifications to existing implementations (e.g., new countermeasures) and new algorithms can be implemented by updating the software layer

DELIVERABLES

• Encrypted Netlist
• Synthesis Scripts
• Firmware (binary)
• Comprehensive Documentation

LICENSING
Following licensing models are available:

• Encrypted Netlist
• Encrypted RTL

MAINTENANCE & SUPPORT

• M&S fee of 15% is mandatory for the first year.
• Telephone and email support is included under M&S agreement.
• IP Core updates are included in M&S.

ORDERING
Purchase order shall include the product number EIP-30010003.

For more information, contact sales@electraic.com

DOCUMENTS
PQC-HW/SW-IP-Core-Datasheet
