RSA IP Cores perform digital signature generation and verification in compliance with the RSA (Rivest-Shamir-Adleman) Digital Signature Algorithm specifications defined in 'FIPS 186'. This standard specifies methods for digital signature generation and verification using the RSA Digital Signature Algorithm. RSA IP cores support bit lengths from 256 to 4096.

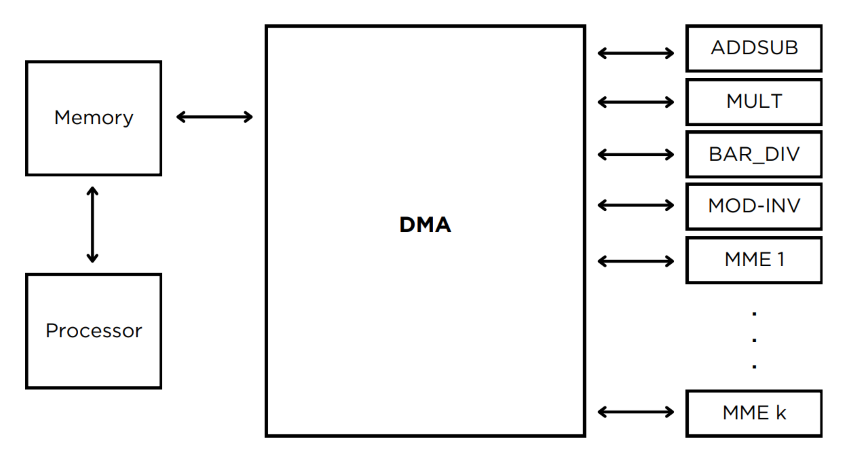

RSA IP cores consist of a cluster of IPs. VHDL is used as the Hardware Description Language of the IP Cores. The cluster includes ADDSUB (Addition and substruction), MULT (Multiplication), BAR_DIV (Barrett Divider), MOD_INV (Modulo Inversion) and MME(Montgomery Modulo Exponentiation) IP Cores. MME cores are configurable and their number can be changed.

FEATURE LIST
RSA IP Cores;

• supports signature generation and verify for bit lengths from 256 to 4096.
• is compliant with FIPS 186.
• is tested Z-7015 Z-7020 Z-7045
• has fully stallable input and output interfaces.

DELIVERABLES

• Encrypted Netlist
• Synthesis Scripts
• Comprehensive Documentation

LICENSING
A one-time license fee is paid with the initial IP purchase.

• Single project license
• Multi project license

MAINTENANCE & SUPPORT

• M&S fee of 15% is mandatory for the first year.
• Telephone and email support is included under M&S contract.
• IP Core updates are included in M&S.

ORDERING

Purchase order shall include the product number EIP-11009.


For more information, contact sales@electraic.com

DOCUMENTS

RSA-IP-Core-Datasheet

Crypto IP Cores - Feature List Table
