ARINC664 END SYSTEM IP Core

ARINC664 END SYSTEM IP Core

  • ARINC664 END SYSTEM IP Core - Design IP Cores - ElectraIC

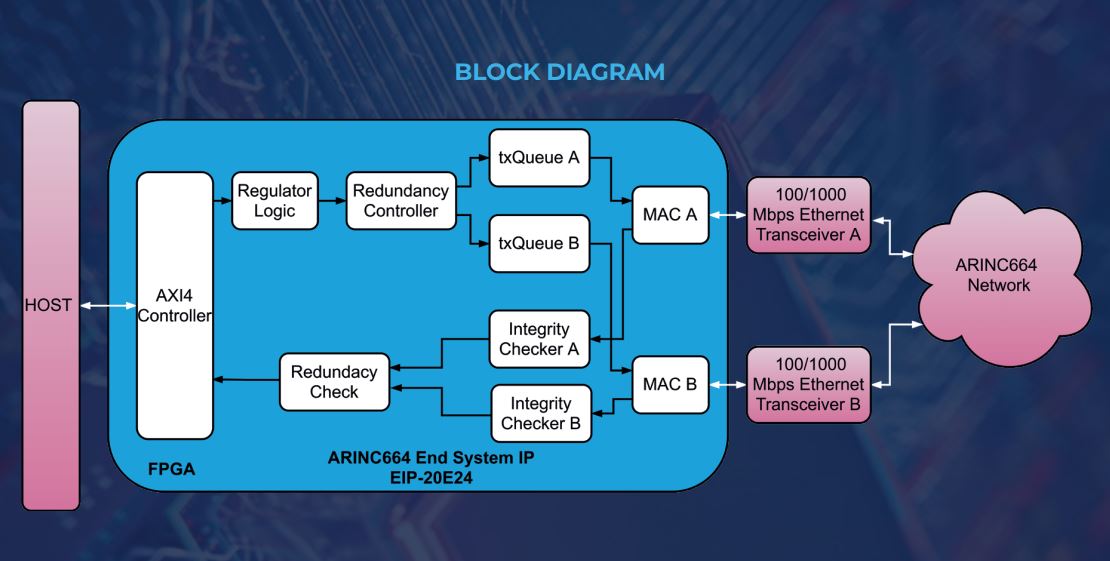

ARINC664 End System IP is an IP Core that implements ARINC664 part 7 and provides interface between aircraft LRUs and ARINC664 network. As an implementation of End System, IP sends the user's messages of different sizes and different time constraints to their destination with a predictable delay. Since the IP core uses the Ethernet interface when connecting to the network, it takes full advantage of the physical layer functions that Ethernet offers. Thanks to the AXI4 interface provided with IP Core, adaptation can be made between any protocol and ARINC664.

FUNCTIONAL SPECS
• Supports 32 VLs
• Adjustable BAG values (1ms to 128ms, 125 us to 32 ms)
• Supports 64 Byte as Lmin and 1471 Byte as Lmax
• Redundancy enable/disable capability
• Integrity Checking enable/disable capability
• Outputs error statistic

INTERFACE SPECS
• AXI4 interface for host communication
• Two ARINC664 Ethernet interface
• End System configuration through AXI4 interface
• 100 Mbps/1000 Mbps Ethernet speed

DOCUMENTATION

ARINC664 END SYSTEM IP EIP-20E24
