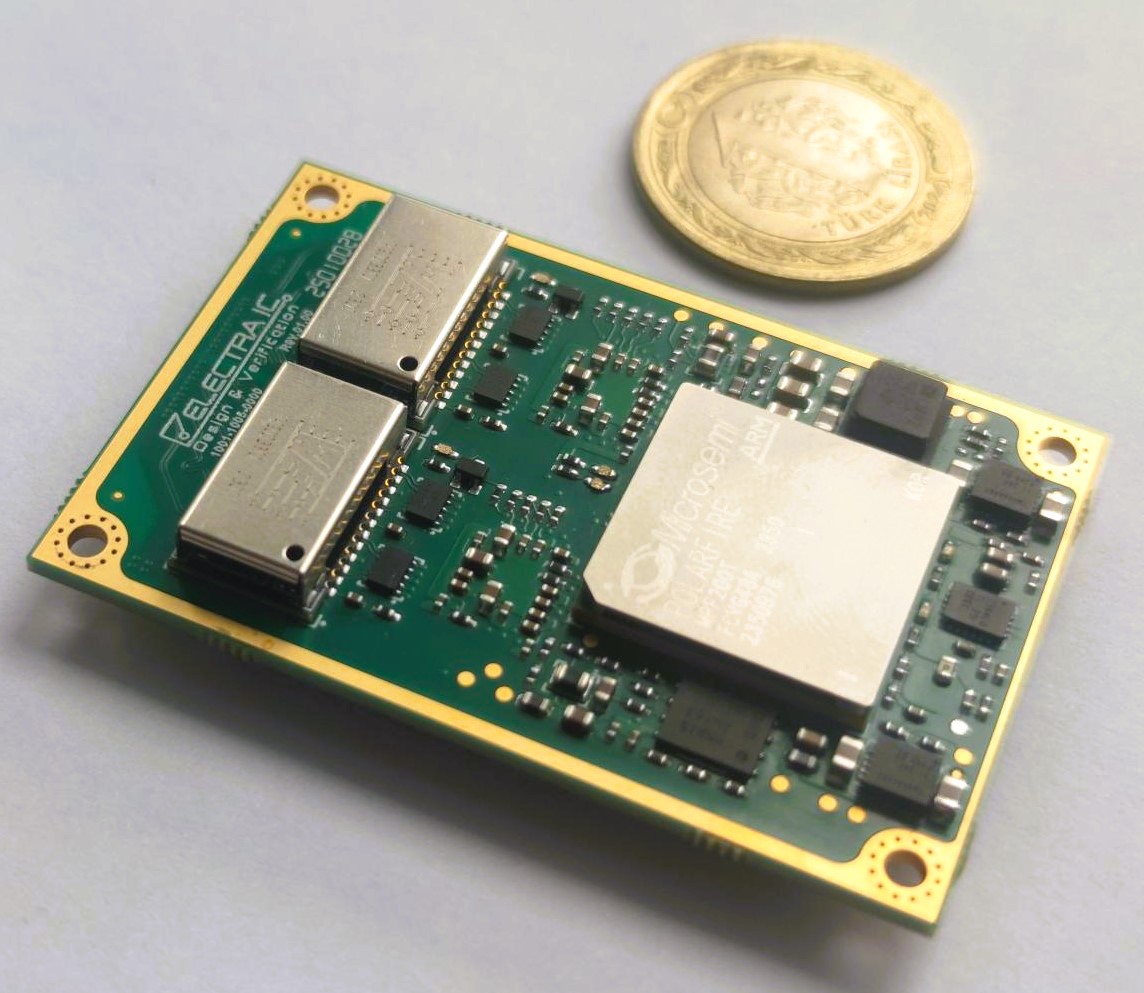

This small form factor PCIe board allows one dual redundant ARINC664 Part7 channel to be easily added to any small embedded system to provide a cost-effective, lightweight, small-size, rugged and reliable bus interface. The board can meet rugged levels of shock and vibration along with a maximum temperature range of -40°C to +85°C.



Features

  • 32 VL Support
  • Adjustable BAG Values (125us - 32ms)
  • 64-byte Lmin & 1471-byte Lmax Data Length Support
  • Dual Redundancy (Enable / Disable)
  • Integrity Check (Enable / Disable)
  • Two ARINC664 Ethernet Ports
  • 100/1000 Mbps Ethernet
  • Discrete I/Os
  • JTAG Interface
  • High-Level C Software Development Kits for Windows®, Linux® and VxWorks®



Technical Specs

  • Microchip MPF200T-FCVG484I FPGA
  • Air Cooled Board
  • x1 or x4 lane PCIe Host Interface
  • 4Gbit Memory DDR3L
  • 256 Mbit QSPI Flash
  • 100 MHz CMOS Oscillator
  • 30mm x 70mm Board Dimensions
  • 3.3V DC Power Supply
  • -40°C & +85°C Operating Temperature
  • RoHS Compliance



Applications

  • Avionics Systems Integration
  • Aircraft Flight Control Systems
  • Aircraft Data Distribution Systems



Small Form Factor PCIe ARINC664 End System Board Brochure



For more information, contact sales@electraic.com



Ordering Information

Product Code Description
EIB-20E6D ARINC664 End System PCIe Board
