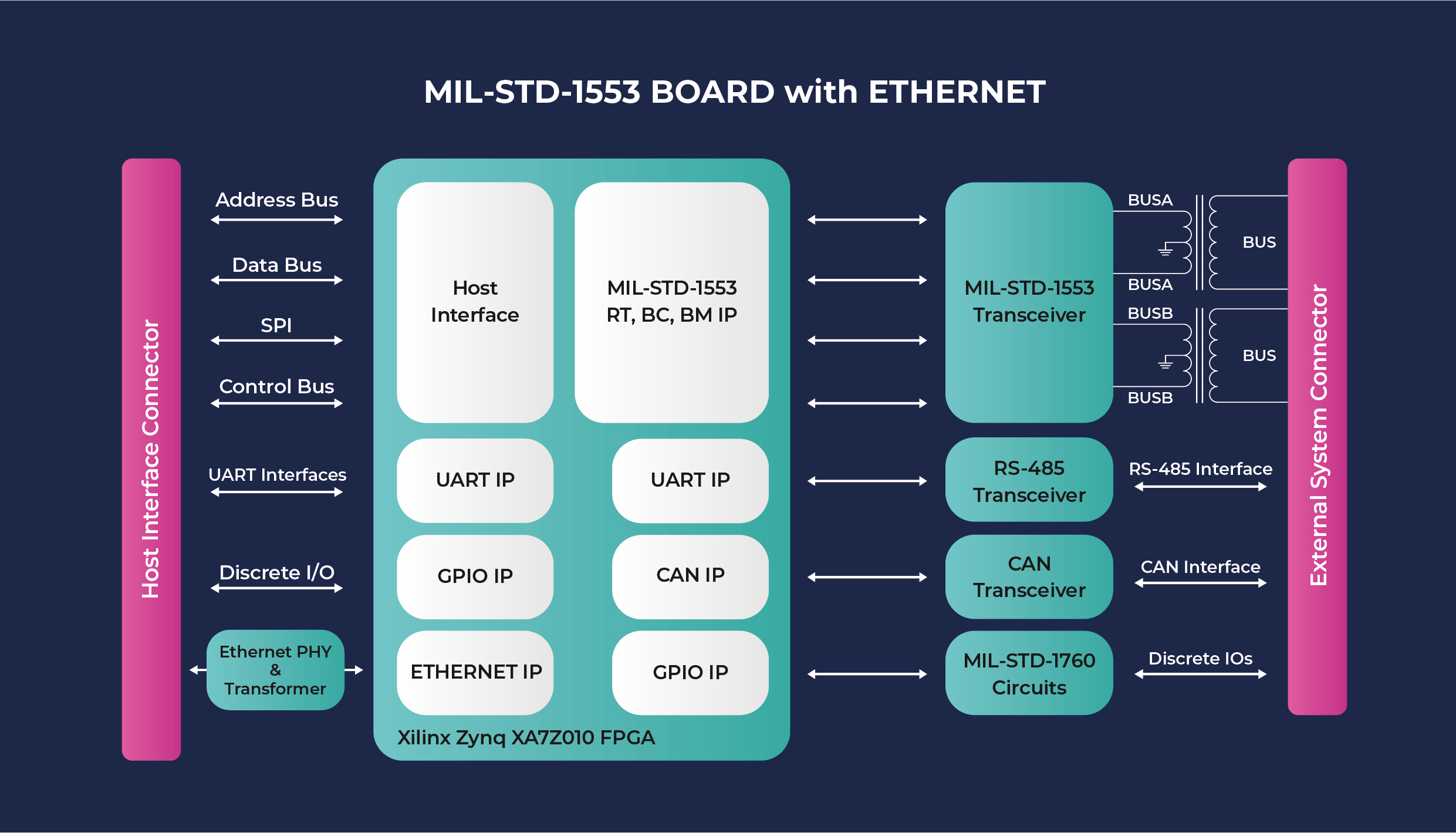

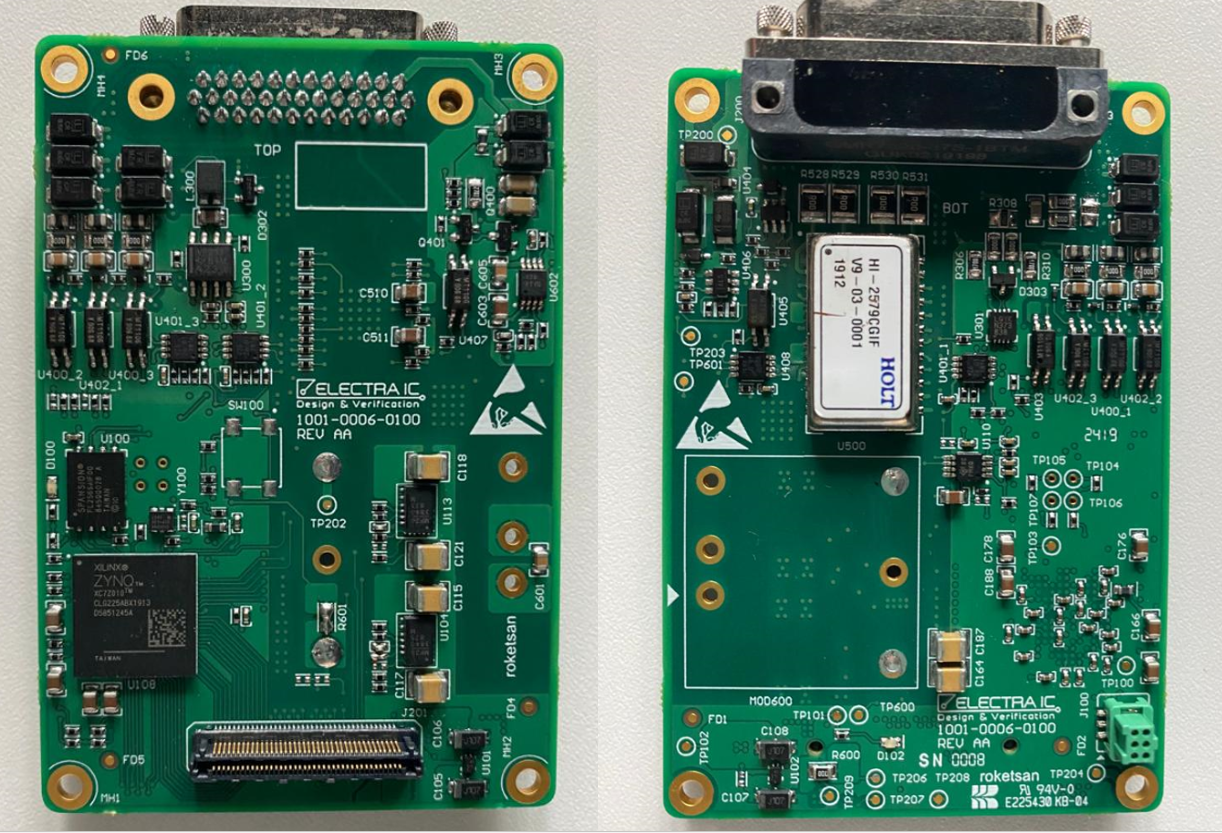

MIL-STD-1553-BOARD with Ethernet

MIL-STD-1553-BOARD with Ethernet

  • MIL-STD-1553-BOARD with Ethernet - Electronic Cards - ElectraIC

Dual-Redundant MIL-STD-1553B Bus transceiver and transformer | Simultaneously configurable MIL-STD-1553 BC, RT, BM modes | Synchronous/asynchronous parallel or SPI host interface

FEATURES

  • Dual-Redundant MIL-STD-1553B Bus transceiver and transformer
  • Simultaneously configurable MIL-STD-1553 BC, RT, BM modes
  • Synchronous/asynchronous parallel or SPI host interface
  • Up to 32K words static RAM with RAM Error Detection/Correction option
  • A comprehensive built-in self-test
  • MIL-STD-1760 compatible busy bit response time support
  • MIL-STD-1760 compatible discrete signals
  • CAN bus interface
  • RS-485 interface
  • Less than 0.3W maximum power dissipation during transmission (2.4W on load)
  • 57mm x 84mm small form factor
  • Industrial operating temperature of -40°C to +85°C ambient
  • 28VDC or 3.3VDC supply
  • RoHS Compliant

MIL-STD-1553-BOARD-wE Brochure
