FPGA Based RF Control Board

FPGA Based RF Control Board

  • FPGA Based RF Control Board - Electronic Cards - ElectraIC

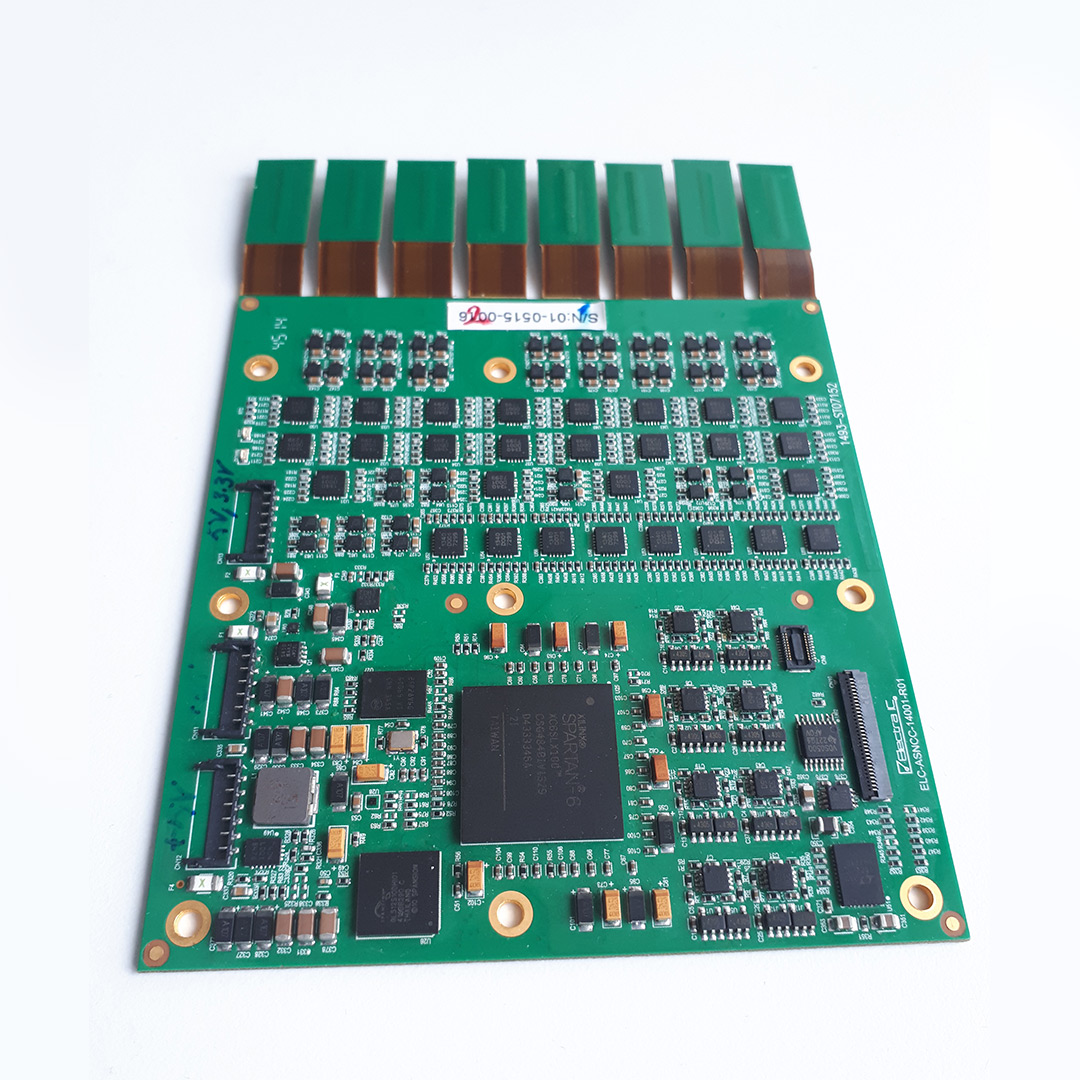

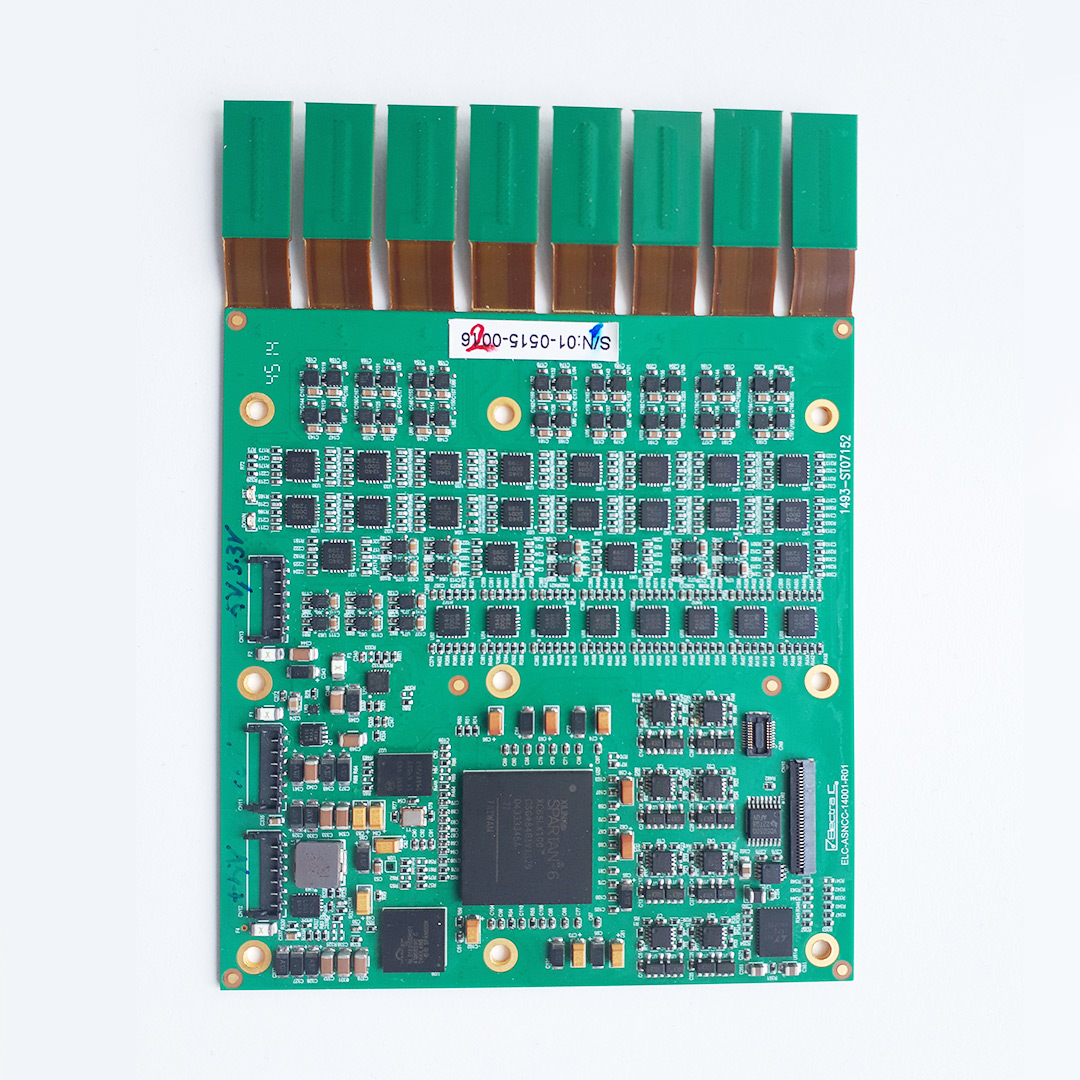

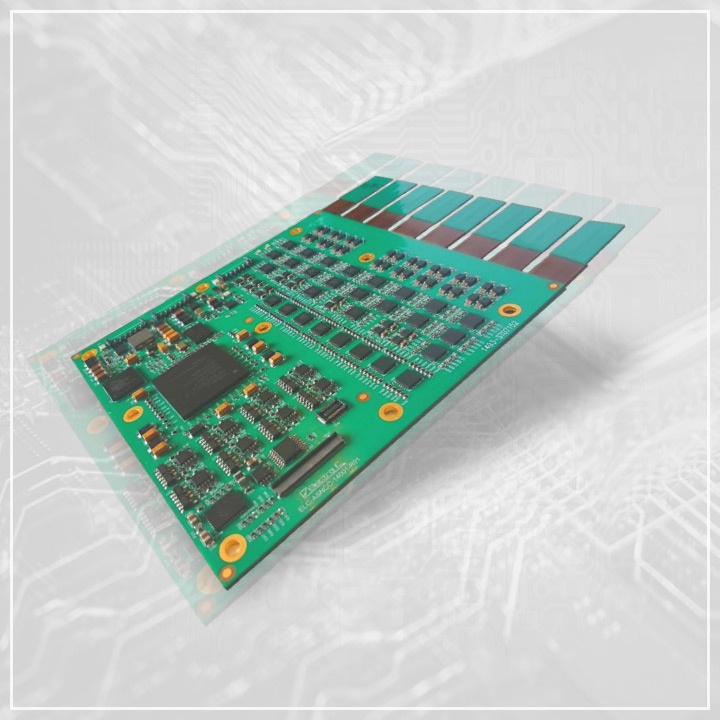

FPGA based structure offers re-programmable messaging structure. 5 Mbps serial interface to control RF modules via various messages scenarios. Supervisory circuit provides overvoltage protection for RF modules.

SMALL FORM FACTOR
Dimensions : 13x100mm
Thickness : 3.6mm

RE-PROGRAMMABLE
FPGA based structure offers re-programmable
messaging structure.

SERIAL INTERFACE
5 Mbps serial interface to control RF modules
via various messages scenarios

RELIABILITY
Supervisory circuit provides overvoltage
protection for RF modules

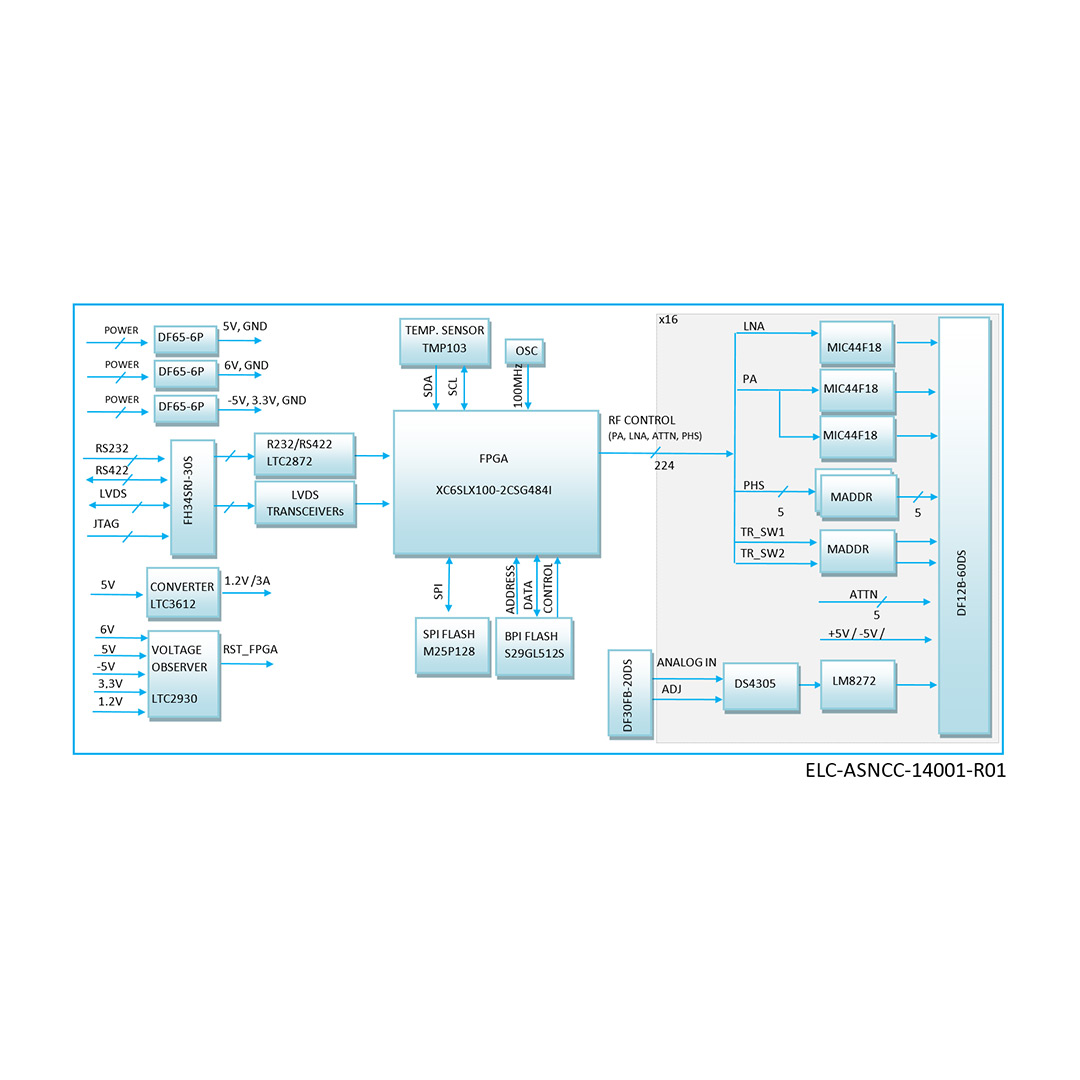

Features

  • Xilinx Spartan 6 LX100 FPGA
  • 64MB BPI Flash / 32MB SPI Flash
  • RS485/RS232 Serial Interface
  • Temperature Sensor
  • Supervisory Circuit
  • 4 LVDS Input / 2 LVDS Output
  • JTAG Interface
  • 16 Ch. TX/RX Control
  • 16 Ch. PA Control
  • 16 Ch. LNA Control
  • 16 Ch. Reference Voltage Generator
  • 16 Ch. Attenuator Controller
  • 16 Ch. Phase Shifter Controller
  • 12R-8F-10R Flexible PCB Structure
  • GUI Based Test Software

DOCUMENTATION

FPGA Based RF Control Board
