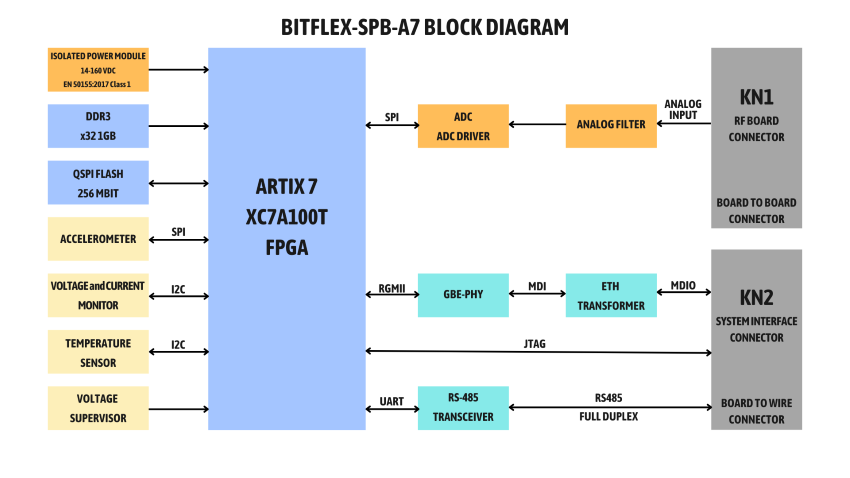

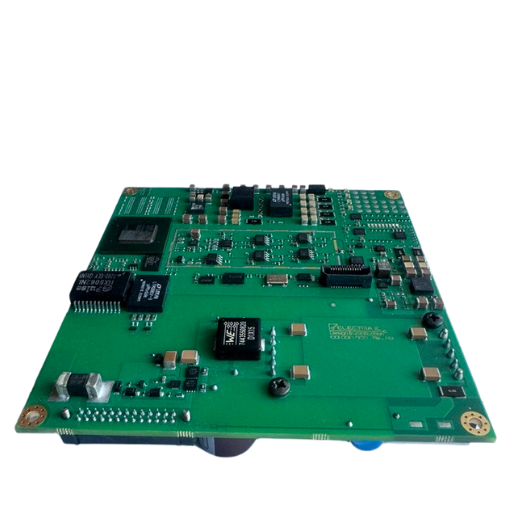

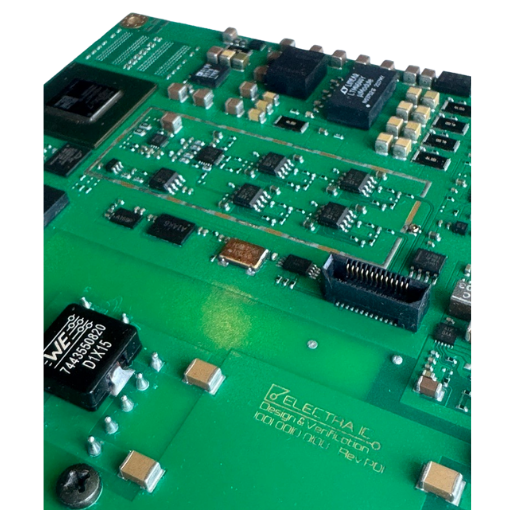

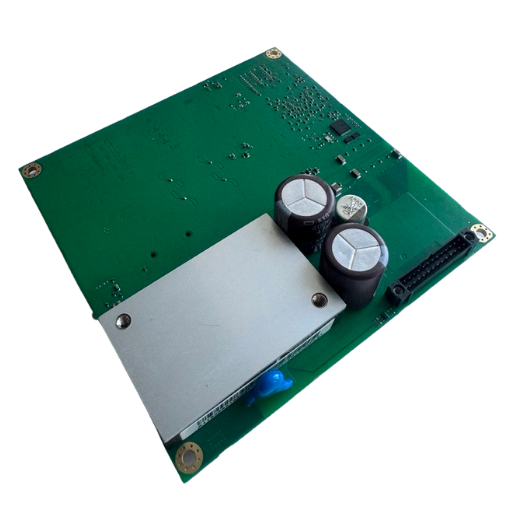

The BitFlex-SPB-A7, an advanced hardware design platform centered around the powerful Xilinx Artix-7 FPGA. This cutting-edge board boasts high-performance capabilities and a comprehensive set of peripherals, including Ethernet, RS422/RS485, and high-speed DDR3 memory.

Designed for versatility, the BitFlex-SPB-A7 goes beyond the ordinary with diagnostic features such as voltage/current and temperature monitoring, along with a supervisory circuit. These advanced functionalities make it an ideal choice for a broad spectrum of applications, particularly in signal processing.

Unlock the potential of your projects with the BitFlex-SPB-A7 – a reliable and feature – rich solution that brings together the best in FPGA technology.

PRODUCT CODE: EIB-60THA7

FEATURES

• Dimension of 120mm x 120mm x 37mm
• Wide Input range from 14VDC to 160VDC
• Compatible for EN 50155:2017 Class 1
• Commercial operating temperature from -40°C to +70°C
• Surge protection and reverse input protection
• Included EMI filter

• ARTIX 7 XC7A100T-2FGG484I and pin-to-pin compatible FPGAs
• 1GB DDR3 RAM
• 256Mb QSPI FLASH

• Supports RF board interface
• 16bit 4MSPS SPI-controlled ADC with analog filter
• SPI based accelerometer
• Voltage and Current monitoring over I2C
• Temperature Sensor input over I2C
• Voltage supervisor circuitry
• 1Gbps ETHERNET interface
• Full Duplex isolated RS422/RS485 interface
• JTAG interface
• Customizable Graphical User Interface

For more information, contact sales@electraic.com

DOCUMENTATION

BitFlex-SBP-A7 Brochure
