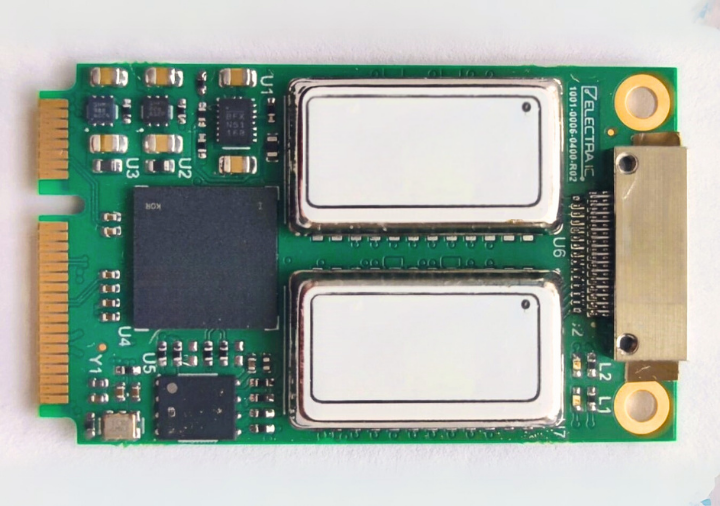

This Full-Mini Card Form Factor F2 PCIe Board allows two dual redundant MIL-STD-1553 channels to be easily added to any small embedded system to provide a cost-effective, lightweight, small-size, rugged, and reliable 1553 bus interface. The board can meet rugged levels of shock and vibration along with a maximum temperature range of -40°C to +85°C.

Features

• Two Dual Redundant MIL-STD-1553 Bus Interface
• Simultaneously Configurable MIL-STD-1553 BC, RT, BM Modes
• Low-cost or rugged connector depends on the customer request
• 8x Discrete I/Os
• JTAG Interface
• High-Level C SDK for Windows®, Linux® and VxWorks®

Technical Specs

• Air Cooled Board
• Full-Mini PCIe Host Interface
• 256 Mbit SPI-Flash
• 2x 512 Kbit SPI-EEPROM
• 1 Wire Secure Authentication
• 2x 100 MHz LVDS Diff Oscillator
• Voltage supervisor circuitry
• F2 mPCIe Full-Mini Card Form Factor (30x50.95)
• Standard PCI Express Mini Card Supply (+3.3V)
• -40°C & +85°C Operating Temperature
• RoHS Compliance

Applications

• Embedded MIL-STD-1553B Standard Applications
• Rugged Small Embedded Systems
• Bus Troubleshooting
• Diagnostic Systems
• Handheld Test Equipment

Full-Mini Card Form Factor F2 mPCIe MIL-STD-1553 Board Brochure
